Our dual-zone wine unit was running warm on the top shelf only. He explained that the upper zone has its own damper and that the motor had failed open. Replaced it, ran the unit for forty minutes to confirm both zones held, and logged the temperatures for me.
Wine storage · columns and under-counter
Sub-Zero wine cooler and wine column repair
Wine units fail quietly. Nothing alarms, nothing floods — a zone simply drifts a few degrees and stays there. The damper and the door seal account for most of it.
Call dispatch, any hour (669) 338-4601 Someone picks up at any hour. Same-day slots open and close through the day, so the dispatcher will tell you what is actually free when you call.

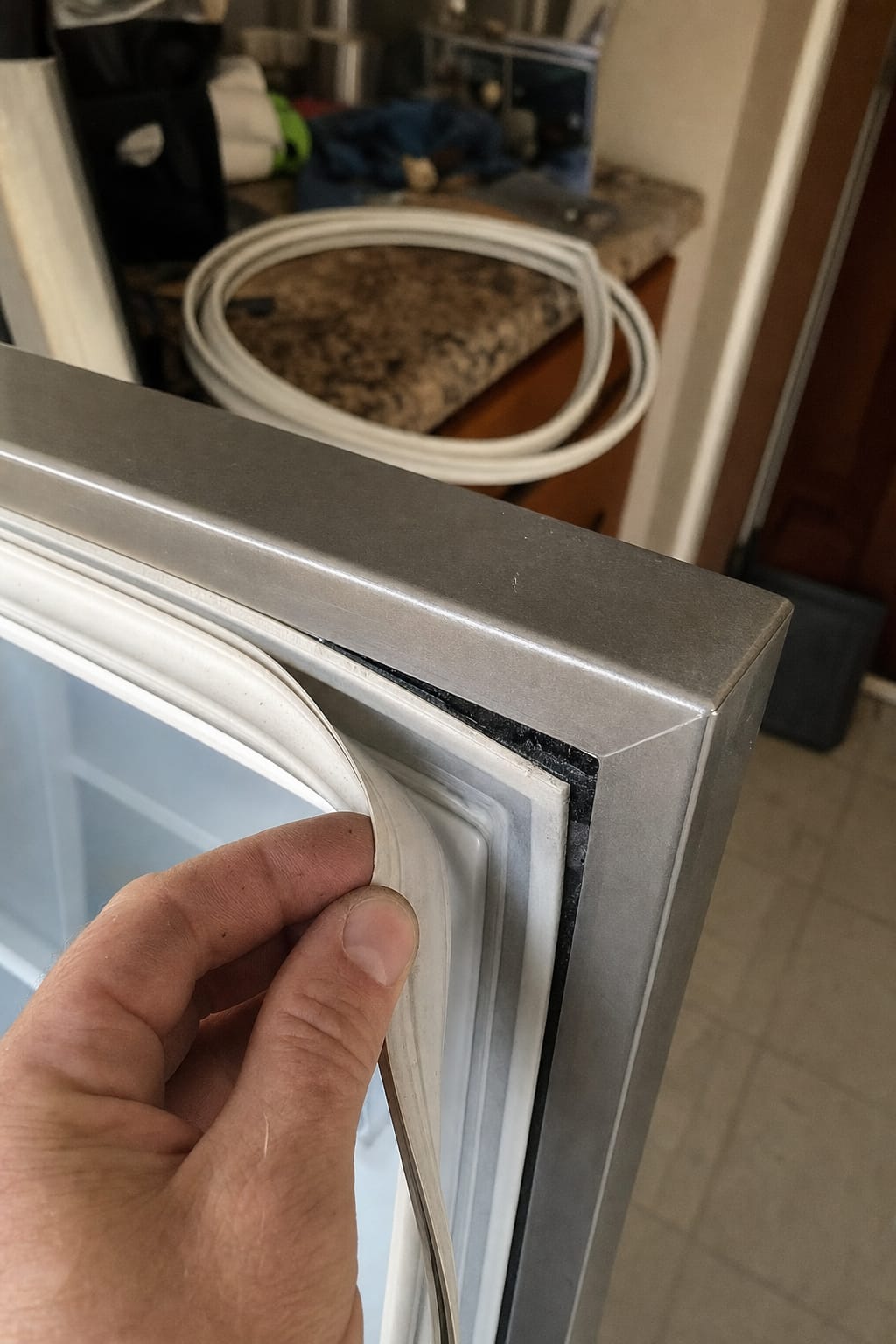

Door gasket seated into the channel · a set gasket is what puts water on the inside of the glass
01 Symptom to cause
A warm zone is not a dead compressor
Dual-zone units share one cooling source. If one zone is right and the other is not, the refrigeration is working and the problem is in how the air is being divided.
| Symptom | Usual cause | What we do on site |
|---|---|---|
| One zone warm, the other correct | Zone damper stuck open or closed, or its control has failed | Damper motor driven and observed, air split measured at each zone, damper assembly replaced if it does not travel. |
| Both zones drifting warm | Condenser airflow choked by the cabinet grille, or a genuine loss of charge | Grille clearance and coil condition checked first, then compressor amp draw, then gauges if the sealed system is implicated. |
| Condensation inside the glass | Door seal set on the hinge side, door out of square, or a failed frame heater | Gasket replaced and the door re-squared to the cabinet. Frame heater circuit tested where fitted. |
| Compressor short-cycling | Start relay or overload, or a thermistor reading the zone incorrectly | Amp draw shown on the meter through a full cycle, relay and overload tested, thermistor read against its chart. |
| Unit vibrating, wine disturbed | Compressor mount rubber perished, or the drain pan resonating against the frame | Mounts and pan isolated in turn until the resonance stops, then the failed part replaced. |
| Interior light out, cooling fine | LED strip or its driver, not the refrigeration circuit | Strip and driver tested and replaced. No refrigeration work needed, so this is often the smallest job we do. |
On the call Tell the dispatcher both zone readings, not just the one that is wrong. The gap between them is the single most useful number for deciding what goes on the van.
02 Airflow
Cabinetry is the enemy of a wine unit

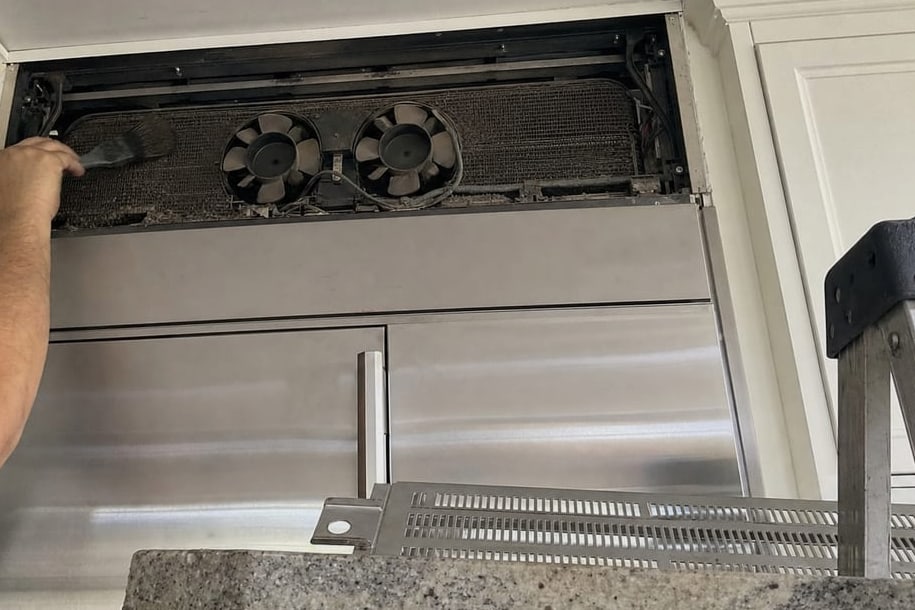

Wine columns and under-counter units are built into millwork with a specified clearance at the grille. That clearance is routinely lost — a toe-kick panel fitted flush, a cabinet run extended, a decorative grille that looks better and breathes worse.
The result is a condenser that cannot shed heat. The compressor runs longer, the zones drift up, and eventually the unit is condemned for a fault it does not have. Restoring the airflow path is often the whole repair.
The second recurring problem is the door. Wine doors are glass, heavy, and hung on hinges that carry that weight for years. When the door drops even slightly the seal stops meeting the cabinet evenly, warm room air trickles in, and you get condensation on the inside of the glass and a zone that never settles.
If the unit is not cooling at all rather than drifting, the sealed system page covers what that diagnosis involves.
03 Reviews
Wine unit calls, in their words
Wine column was sweating inside the door. He found the gasket had taken a set on the hinge side, replaced it and checked the door was pulling square against the cabinet afterwards.
Wine unit compressor was short-cycling. Diagnosis was careful and he showed me the amp draw on the meter so I could see what he was talking about rather than being told to trust him.
04 Questions
Wine cooler questions
Only the upper zone is warm. Is the whole unit failing?
No. A dual-zone column feeds both zones from one cold source and meters air into the upper zone with a damper. When one zone alone drifts, the damper motor or its control is the first suspect, not the compressor.
What temperature should a wine unit hold?
It depends what you are storing, but the important thing is stability rather than a specific number. A zone that swings several degrees through the day is doing more harm to the wine than one sitting a little above where you set it.
There is condensation on the inside of the glass. Why?
Humid room air is reaching the cold glass. The usual cause is a door seal that has taken a set on the hinge side, sometimes a door that has dropped out of square. On glass doors it can also be a failed anti-condensation heater in the frame.
Can you work on under-counter wine units as well as full columns?
Yes. Under-counter units are more likely to have condenser airflow problems because they are boxed into cabinetry with a tight grille. That grille clearance is the first thing we check.
Tell the dispatcher the model number and what it is doing
It is stamped on a plate inside the fresh-food compartment, usually on the upper left wall or behind the top grille. With the model in hand the van gets loaded with the parts that unit actually fails on, which is the difference between one visit and two.
